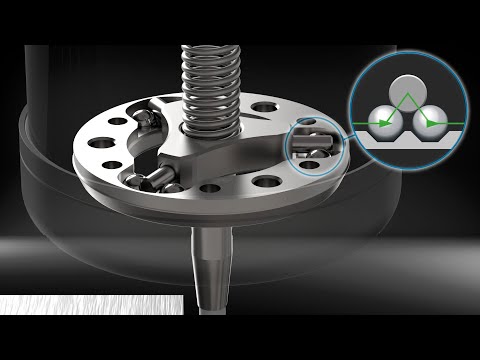

Our standard-accuracy touch probes use a kinematic design, proven over five decades. The mechanism enables measurement repeatability of 1.00 µm 2σ, allowing you to set and inspect components accurately and reliably. Other benefits include:

– Reduced machine downtime.
– Automatic fixture, job alignment and rotary axis set-up.
– Manual setting errors eliminated.
– Reduced scrap.
– In-cycle part measurement with automatic offset correction.

The ultra-compact OMP40-2 (40 mm diameter) and compact OMP60 (63 mm diameter) touch-trigger probes with optical transmission provide a flexible probing solution. The OMP40 is suitable for small to medium machining centres whilst the larger OMP60 is suitable for all sizes of machining centres and small to medium multi-tasking machines. Both probes are ideal for workpiece set-up and inspection.

– Proven kinematic design.
– Exceptional resistance to light interference with modulated transmission.
– 360° transmission envelope.
– Various activation options and adjustable trigger force (OMP60 only).
– 1.00 µm 2σ repeatability.

Offering superior communication capability, the ultra-compact RMP40 (40 mm diameter) and compact RMP60 (63 mm diameter) probes are suited for operation on machines of all sizes. The traditional kinematic resistive mechanism combined with unique radio transmission technology make them ideal for modern machine shops where line-of-sight between probe and interface is not always possible.

– Proven kinematic design with secure frequency hopping spread spectrum (FHSS) radio transmission.
– Globally recognised 2.4 GHz waveband compliant with radio regulations in all major markets.
– Various activation options.
– Adjustable trigger force (RMP60 only).
– 1.00 µm 2σ repeatability.
