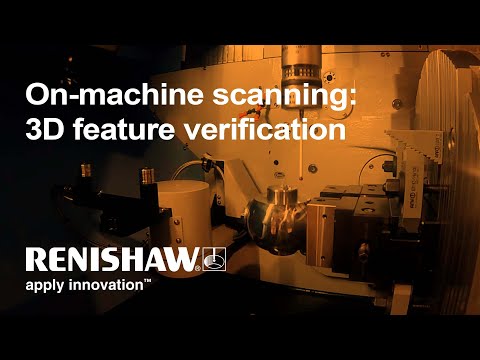

With unique 3D sensor technology, the OSP60 scanning probe with SPRINT technology provides the ultimate probing capability for users of CNC machine tools.

Incredibly responsive to surface variation and capable of detecting sub-micron movement at the probe stylus tip, our scanning probe captures 1,000 true 3D data points every second. Offering precision scanning and point measurement capability, it is the ideal solution for a diverse range of industrial applications.
Discover its unbeatable benefits:

– Rapid part measurement. Scanning provides incredible time savings with on-machine inspection and job set-up, increasing profitability and productive machining time.
– Determine feature form. Determine surface high-point / low-point or full feature form measurement.
– In-process control. Capture workpiece measurement results and keep on-machine processes under control, automatically. Output results for further analysis, or for quality assurance purposes.

Based on a dual planar spring design, the OSP60 with SPRINT technology measures the full 3D deflection magnitude, and the XYZ direction components. This allows the probe to be responsive to resurface variation, enabling accurate high-speed measurement of complex free-form and prismatic surfaces.

Two concentric rings are installed within the probe assembly: one fixed to the probe body; the other fixed to the stylus mount, which then moves with the stylus. Capacitance measurements between the circuits on the rings allow the probe to accurately record stylus tip deflections.
